One Step Closer to IPv6

Over many years, we have now read warnings about the exhaustion of available IPv4 addresses. So far, there still seem to be ways and ideas on how to extend their lifetime (by approaching large organizations, using NAT, re-dedication of, and so on).

Switching over to the much-dreaded IPv6 sounds easy, but even minor things can still cause problems.

So what is the current state of AWS with this topic? And how did the landscape change during re:Invent 2021?

IPv6-only Subnets

There were multiple announcements related to IPv6 during re:Invent 2021, most notably the availability of IPv6-only Subnets, which got an in-depth AWS Blog Post.

Still, if you read the article carefully, you will find one gap: If you create an IPv6-only subnet, how would you communicate with non-IPv6 targets?

Luckily on the very next day, a feature for this was released but lacked an in-depth blog post: DNS64/NAT64 Support

DNS64 and NAT64

The two addressing schemes, IPv4 and IPv6, are fundamentally different in syntax, so bridging the gap seems impossible. But as IPv6 is much larger, it is actually no problem to reserve an area inside of it for “wrapping” old-style addresses.

This wrapping is the idea behind NAT641: It uses the IPv6 Well Known Prefix 64:ff9b::/962 which has a size of 32 bits, exactly the addressing range of IPv4, and maps the legacy addresses onto it:

IPv4 IPv4 octets in Hex IPv6 01 01 01 01 64:ff9b:0101:0101 48 15 D2 1D 64:ff9b:4815:d21d

So if you have a network device that is responsible for handling the 64:ff9b::/96 prefix, it can translate incoming IPv6 requests into an IPv4 address, send them out and translate the response back into IPv6. While the implementation is much more complex, NAT64 generally provides this exact mechanism.

But how would our IPv6-only clients even come up with those IPv6-wrapped addresses, if it cannot handle them natively? That is the second part of the equation: DNS643. If you query a name server with DNS64 support, it will either return such a wrapped address (if there is only an IPv4/A-type record for the target) or the native IPv6 address (if there is an IPv6/AAAA-type record available).

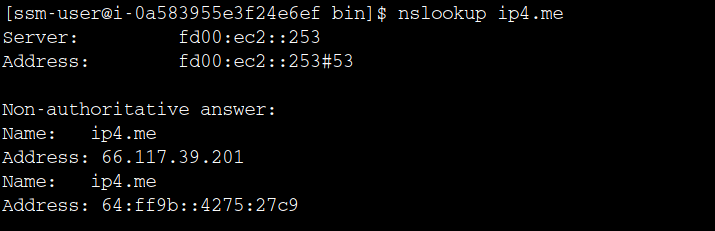

Translated IPv4 address

As you can see, the IPv4 address gets translated into its IPv6 representation automatically by the DNS64-enabled and VPC-integrated nameserver.

So there are three components needed for DNS64/NAT64 on AWS:

  1. Activating this feature on the IPv6-only subnet to adjust DNS lookups
  2. A NAT Gateway which is in a subnet with both IPv4/IPv6 addresses
  3. The proper route table entry to hand requests to 64:ff9b::/96 over to the NAT Gateway

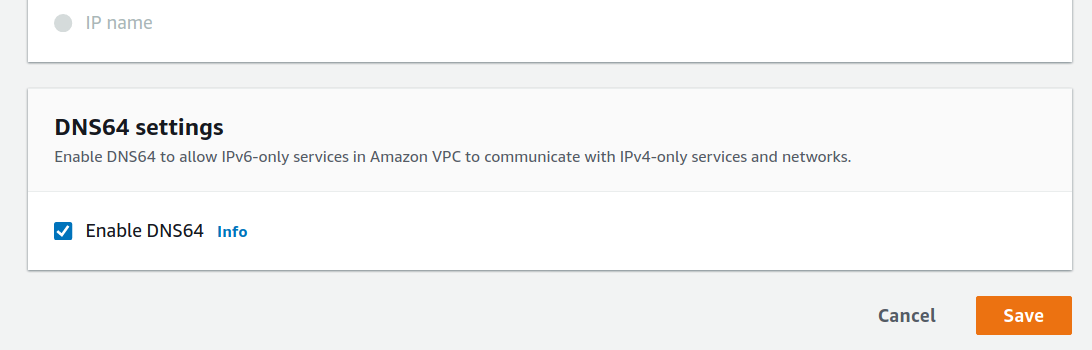

Activate DNS64 on subnet settings

Route Tables

With these alternatives, we end up with four different routing table designs. The only type that does not have any IPv4 capabilities is the “Public IPv6-only” subnet type.

Public Dualstack

Prefix Next Hop Remark IGW Public IPv4
::/0 IGW Public IPv6

Private Dualstack

Prefix Next Hop Remark NAT GW NAT for IPv4
::/0 EIGW Egress only for IPv6 + responses

Public IPv6-only

Prefix Next Hop Remark
::/0 IGW Public IPv6

Private IPv6-only (needs DNS64 feature on subnet level)

Prefix Next Hop Remark
64:ff9b::/96 NAT GW NAT64 prefix for IPv4 targets
::/0 EIGW Egress only for IPv6 + responses

Other Services

While IPv6 adoption is still rather slow, there have been significant advances over the last 12 months at AWS:
